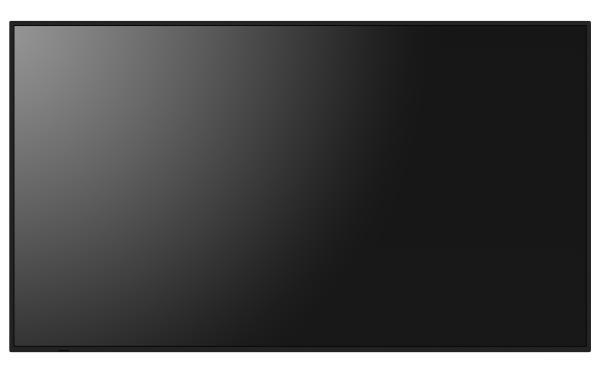

When imaging precision and 24/7 operational reliability cannot be compromised, the 6th generation of MultiSync P series presents best-in-class performance with an advanced feature set for mission-critical applications. Unparalleled clarity of detail and colour accuracy is achieved with 8K signal processing, wide colour gamut and the integrated SpectraView engine controlling all visual parameters. Even in bright ambient light conditions, high brightness levels of 700 cd/m combined with a high haze filter guarantees exceptional readability with no annoying reflections. The quality build is robust for use in public spaces.
Features
- Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
- Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment.
- Security assured – 802.2x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
- Mission-critical performance – with 700 cd/m² brightness, long-life components and a robust flame-resistant metal chassis, the P6 series is engineered to deliver lasting clarity and durability in challenging environments without the need for bulky housings.
- Trusted integration – full compatibility with major AV ecosystems, including Crestron XiO Cloud and NVX, Q-Sys, Cisco Webex, Matrox IPMX, and CMS solutions, ensures seamless setup and scalability.
Specifications
General Information
- Panel Technology: IPS with Direct LED backlights
- Active Screen Area (W × H): 1,428.48 × 803.52 mm
- Screen Size: 65 inch
- Aspect Ratio: 16:9
- Pixel Pitch: 0.372 mm
- Brightness: 700 cd/m²
- Contrast Ratio: 8000:1
- Viewing Angle (H/V): 178° / 178° (typ. at CR 10:1)
- Colour Depth: 1.073 bn (10‑bit)
- Colour Gamut: 72% of NTSC
- Response Time: 8 ms
- Panel Refresh Rate: 60 Hz
- Haze Level: 25%
- Supported Orientation: Face Up; Landscape; Portrait
Resolution
- Native Resolution: 3840 × 2160
- Supported Resolutions: 640 × 480; 720 × 400; 720 × 480; 1024 × 768; 1280 × 720; 1280 × 800; 1280 × 1024; 1360 × 768; 1366 × 768; 1400 × 1050; 1440 × 900; 1600 × 1200; 1680 × 1050; 1920 × 1080; 1920 × 1200; 1920 × 2160; 3840 × 2160; 4096 × 2160
Synchronisation Rate
- Horizontal Frequency: 15–135 kHz
- Vertical Frequency: 23–76 Hz
Connectivity
- HDMI IN 1: Video Input; UHD (60 Hz) HDCP 2.2; Audio Input; ARC; CEC
- HDMI IN 2: Video Input; UHD (60 Hz) HDCP 2.2; Audio Input; CEC
- HDMI OUT: Video Output; UHD (60 Hz) HDCP 2.2; Audio Output; Loop Through: HDMI IN 2, Option, Compute module
- DP IN 1: Video Input; UHD (60 Hz) DP 1.2; HDCP 2.2; Audio Input
- DP OUT: Video Output; UHD (60 Hz) DP 1.2; HDCP 2.2; Audio Output; Loop Through: DisplayPort IN, USB‑C 2
- USB‑A 1: USB 2.0 / 3.2; 4.5 W; Peripherals; USB Storage
- USB‑A (Service): 2.5 W; Service
- USB‑C 1: Video Input; UHD (60 Hz); DP Alt 1.2; HDCP 2.2; Audio Input; USB 2.0 / 3.2; 65 W
- USB‑C 2: USB 2.0 / 3.2; 7.5 W; Peripherals; Storage
- Audio Output (3.5 mm): Line Out
- LAN 1: 100 MBit/s
- LAN 2: Loop Through: LAN 1, RS‑232C, IR; 100 MBit/s
- RS‑232C: 9600 bps
- Remote In (3.5 mm): Eco Sensor (IR‑Extender, Ambient and Presence)
Calibration
- Factory Calibration: Gamma; Intensity; RGB; Uniformity; White Point
- Calibration with Software: Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
- Calibration Software: Display Wall Calibrator
Open Modular Intelligence
- Compute Module Slot: RPi4 Compute Module
- Intel® SDM: Accepts Intel® Smart Display Modules Large and Small up to 66 W
Sensors
- Ambient Light Sensor: Integrated, triggered actions programmable
- Temperature Sensor: Integrated, 3 sensors, triggered actions programmable
- Human Sensor: Optional via Eco Sensor (PNKTES1)
Electrical
- Power Consumption: 160 W (shipping)
- Power Savings Mode: < 0.5 W; < 2 W (Networked Standby)
- Power Management: VESA DPMS
- Power Supply: 100–240 V AC; 50/60 Hz; internal
Environmental
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 20% to 80%
- Storage Temperature: -20°C to 60°C
- Storage Humidity: 10% to 80%
Mechanical
- Dimensions (W × H × D): 1,454.5 × 832.4 × 59.5 mm
- Weight: 26 kg
- VESA Mounting: 400 × 400 mm (FDMI); 4 holes; M6
- Bezel Width: 11 mm (left, right, top); 13.9 mm (bottom)
- Ingress Protection: IP5x (front); IP2x (back)
- Packaging Dimensions (W × H × D): 1,620 × 950 × 185 mm
- Packaging Weight: 35 kg
- Material: Metal
Available Options
- Accessories: Eco Sensor (PNKTES1); Soundbar (PN‑ZCMS1)
Other Features
- Safety and Ergonomics: CE; RCM; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C‑UL or CSA
- Pixel Failure Class: ISO 9241‑307, Class 1
- Resistance to Fire: Metal backcover; plastic material certified acc. to UL94‑5VB
- Energy Efficiency: 103 kWh/1000 h; Class G; LED backlight
- Ecological Standards: EnergyStar 8.0
- 3rd Party Certifications: Certified for Crestron CCV2 and XiO Cloud
- Special Characteristics: CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler
- Colour Versions: Black Front Bezel, Black Back Cabinet
- Audio: Integrated Speakers (10 W + 10 W)
- Shipping Content: 2× AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
- Operating Hours: 24/7
- External Control: AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
- Remote Management: NaViSet Administrator 2
- Security: Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN)
