Pro2 4X Source / 4X Zone Stereo Amp Power Amplifier - Inbuilt Dac

  • Part: 1119489
  • Model: PRO1323
$327.00

Availability

In Stock

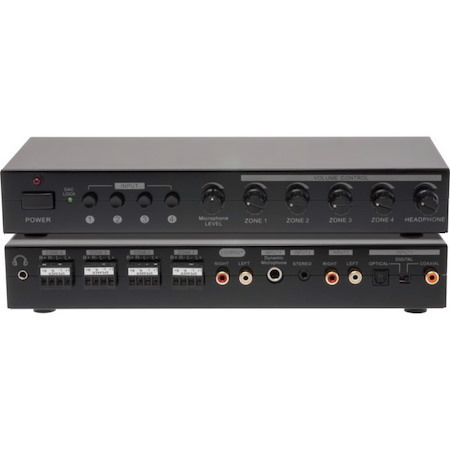

Pro2 PRO 1323 4- Source 4-Zone Stereo Audio Power Amplifier

With a diverse range of inputs including digital optical or coaxial and dynamic microphone inputs and the ability to adjust each zones volume independently the PRO1323 is a quick and easy way of adding audio in up to four rooms. It also features a Loop-out for expanding to another unit increasing the number of zones further

Key Specifications
  • Four-in and five-outIN 1x Digital Optical / Coaxial selectable 1x RCA Stereo 1x 3.5mm Stereo 1x Dynamic Microphone inputOUT 4 Speaker output 1 Headphone output
  • Built-In audio digital to analogue converter DAC Audio DAC Lock indicator
  • Independent microphone level control
  • Individual speaker volume control
  • Provides line loop-out for expanding to more zones
  • Large detachable terminal block supplied for quick and easy installation Screw terminals handle wire sizes from 24 to 12 gauge

Speaker Audio Power Amplifier x4 Specifications
  • Amplifier Type Stereo Class-D
  • Output power 15WRMS per channel RL4 ohm
  • THDN 0.06 RL8 ohm f 1 kHz
  • Minimum Load Resistance 4 ohm
  • Includes Speaker Protection circuit.

Earphone Audio Power Amplifier Specifications
  • Output power105mWRMS per channel
  • THDN 0.05 RL16 ohm f 1 kHz
  • Minimum Load Resistance 16 ohm

General Specifications
  • Power Consumed 9A Max
  • Power Source DC 12 Volts
  • Size LxWxH 285mm x 128mm x 43mm
  • Net Weight Unit only 0.8 Kg
