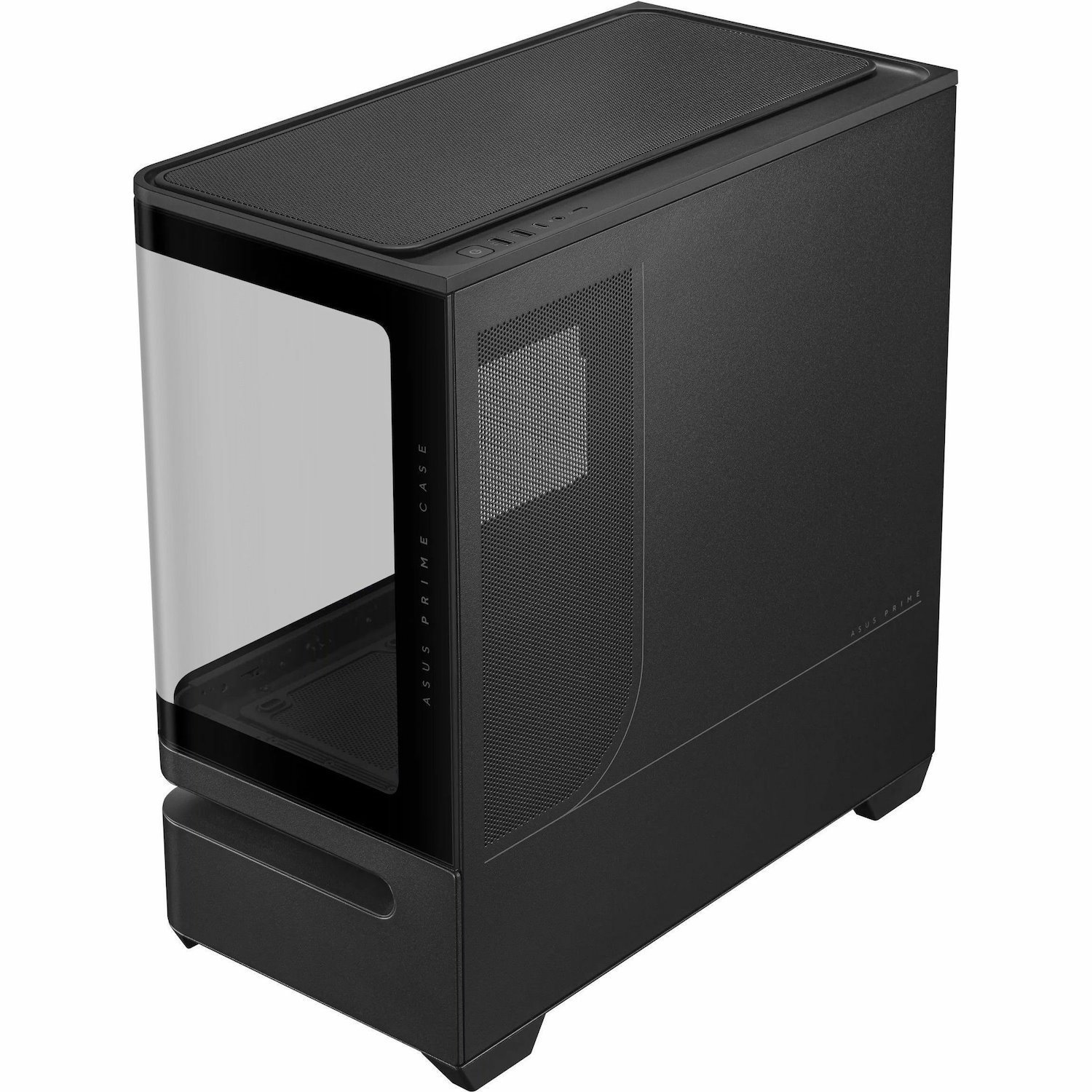

ASUS PrimeAP202
The ASUS Prime AP202 is a versatile panoramic mATX chassis designed to showcase system components with style. A curved tempered glass panel extends seamlessly from the front to the side, offering spectacular views of components from almost any angle. A patented slot vent provides optimal cooling for the graphics card, and an integrated ARGB light band works seamlessly with Aura Sync.
Patented slot vent
- provides optimal graphics card cooling
Extensive compatibility
- supports graphics cards up to 420mm long
Integrated ARGBlight band
- works seamlessly with Aura Sync
Curved Tempered Glass
See the Difference
Views through the curved tempered glass that stretches across two sides of the case show internal components from multiple angles. This glass undergoes a five-stage process that approaches aerospace standards, including thermal treatment that gives it superior strength and durability. This technique helps ensure reliable protection while elevating the DIY experience, offering users an immersive and refined foundation for their build.
01
- Raw Material Selection
02
- Cutting & Edge Grinding
03
- Tempered & Heat Bending
04
- Quality Inspection
05
- Safety Evaluation
Easy-Detach Rail
The curved glass panel features a easy-detach rail, making removal and reattachment safe and simple.
Unique Design
Patented Slot Vent
An innovative airflow design offers ideal thermal performance, letting air in to cool mission-critical components, especially the graphics card.
Ambient Lighting

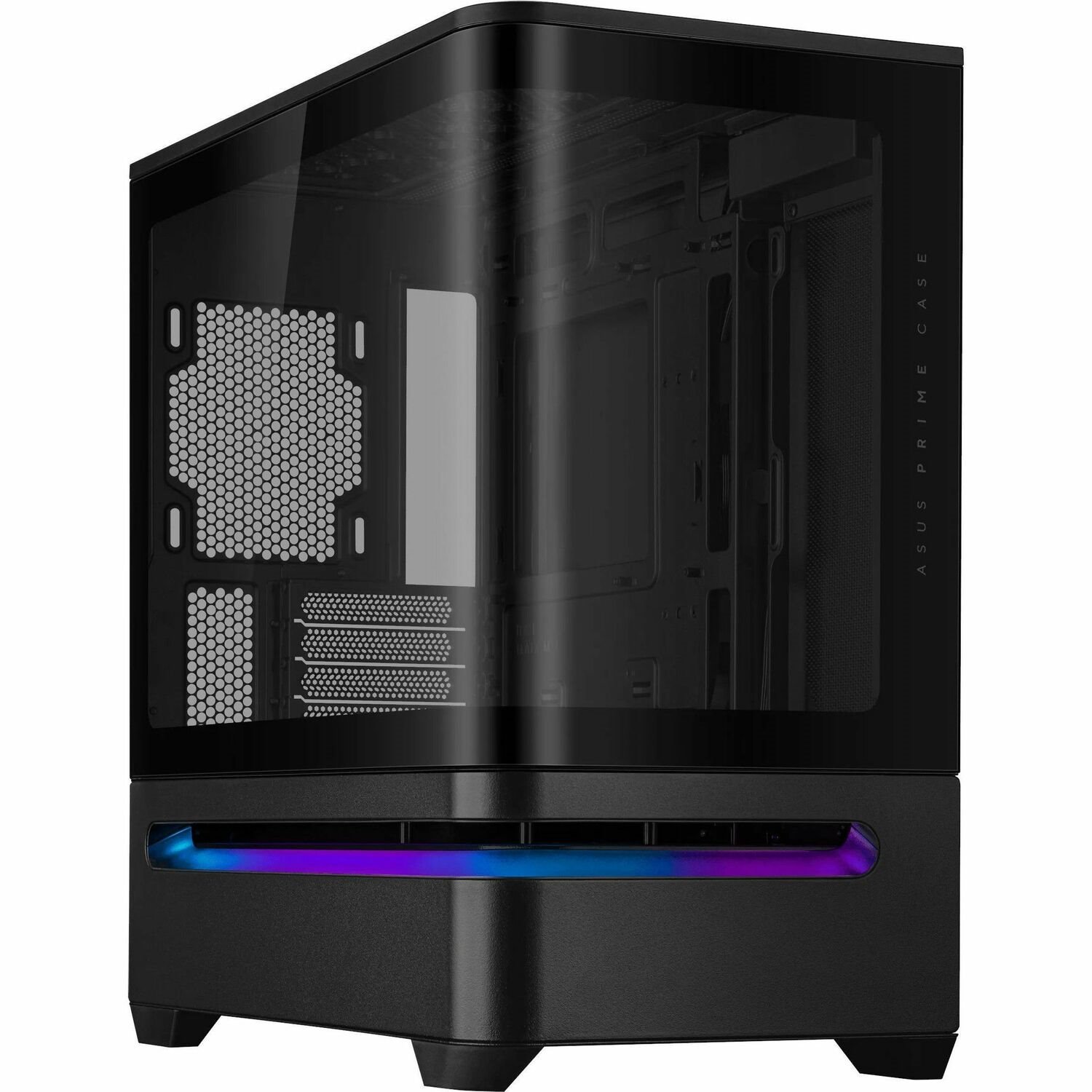

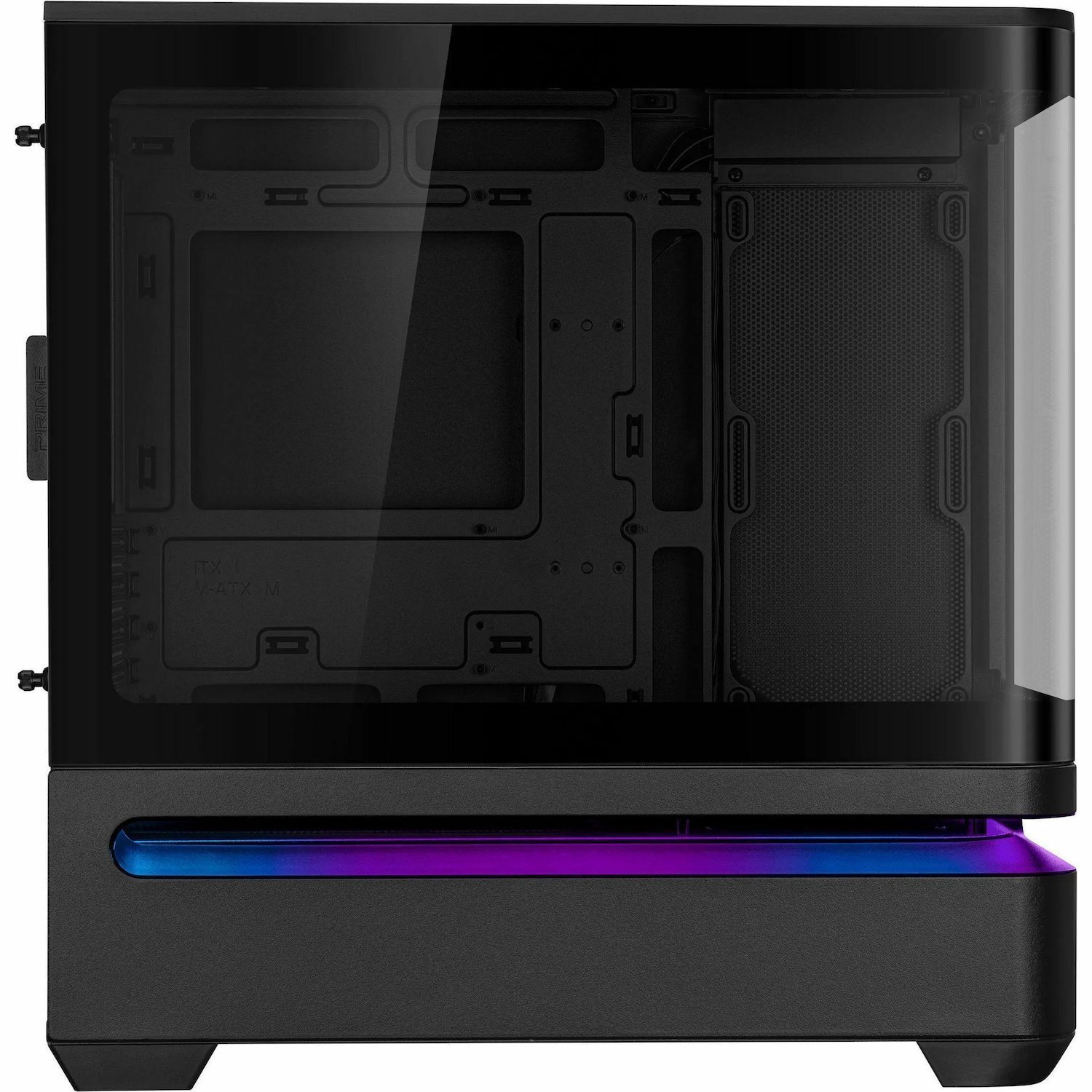

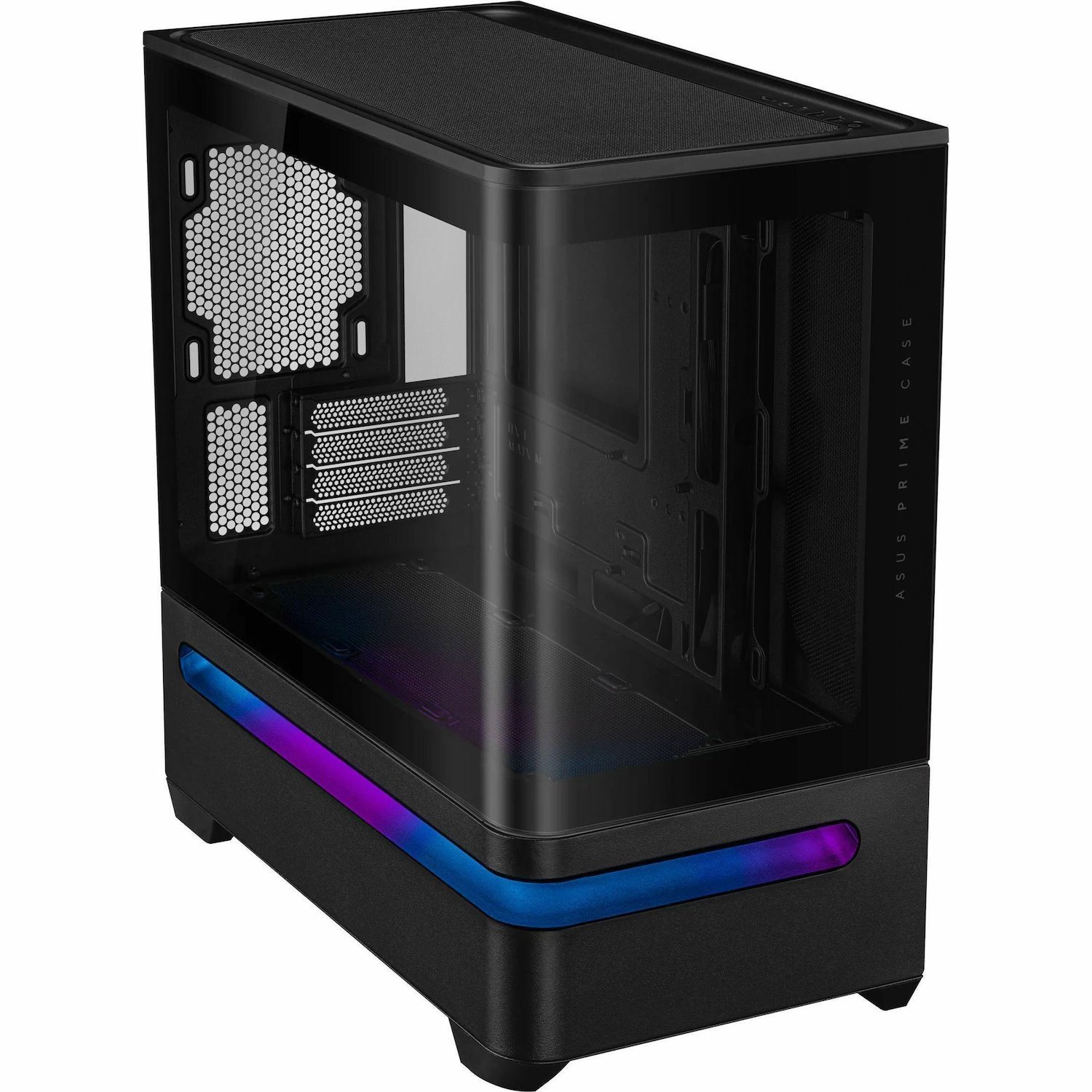

An integrated ARGB light band near the bottom of case provides spectacular lighting effects, with Aura Sync adapting seamlessly to unique user scenarios. Customize whatever colors you want to make your PC build shine.
Functionality
High-Speed USB Type-C®
The I/O panel on the top features a USB Type-C® port ready for transfer speeds of up to 20Gbps.
Optimized Cable Management
A 30mm compartment behind the motherboard helps keep cables tucked away and tidy.
Unified Front I/O header
A thoughtful header design makes connecting Front Input/Output (FIO) components to the motherboard easy.
BROAD Compatibility
The AP202 supports graphics cards up to 420mm long, radiators up to 360mm long, PSU length up to 200mm and CPU air coolers up to 175mm tall, giving builders plenty of options for assembling their next PC. It also offers ample space to install up to nine 120mm fans.
mATX Motherboard
360mm AIO Cooler
420mm Graphics Card
200mm PSU
- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://www.asus.com/au
- Brand Name
- Asus
- Packaged Quantity
- 1
- Product Type
- Computer Case
- Technical Information
- Motherboard Supported
- Micro ATX
- Mini ITX
- Number of Fans Supported
- 9
- Fan Supported Details
Cooling Support (Top)
- 3 x 120 mm
- 2 x 140 mm
Cooling Support (Rear)
- 1 x 120 mm
- Fan Size Supported
- 120 mm
- 140 mm
- Features
- Dust Filter
- Thermally Optimized
- Curved Side Panel
- Cable Management
- Window Panel
- Yes
- Window Panel Location
- Left Side
- Front
- Bays
- Number of Internal 2.5"/3.5" Bays
- 2
- Number of Total Expansion Bays
- 2
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Interfaces/Ports
- Total Number of USB Ports
- 3
- USB Port Details
- 2 x USB 3.2 Gen 1
- 1 x USB 3.2 Gen 2x2 Type C
- Front USB
- Yes
- Total Number of Audio In Ports
- 1
- Front Audio In
- Yes
- Total Number of Audio Out Ports
- 1
- Front Audio Out
- Yes
- Microphone
- Yes
- Power Description
- Power Supply Installed
- No
- Number of Power Supplies Supported
- 1
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Tempered Glass
- Cooler Type
- Fan Cooler
- Form Factor
- Micro Tower
- Maximum CPU Cooler Height
- 175 mm
- Maximum PSU Length
- 200 mm
- Maximum GPU Length
- 420 mm
- Height
- 441 mm
- Width
- 236 mm
- Depth
- 460 mm
- Weight (Approximate)
- 9 kg
