- General Information
- Manufacturer
- Alogic
- Manufacturer Website Address
- http://www.alogic.co
- Brand Name
- Alogic
- Product Type
- Docking Station

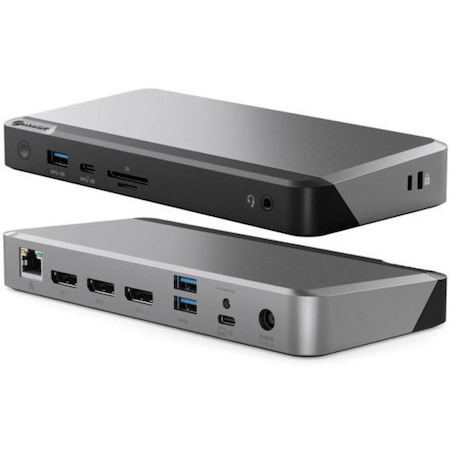

SIMPLIFIED CONNECTIVITY-The MX3 makes multi-display set ups simple. Featuring DP Alt Mode technology, it connects directly with up to three displays and multiple other accessories. No need to install drivers or software. Plug in and go.
SINGLE 5K DISPLAY WITH MAC-The MX3 is a powerful docking station for Mac users seeking to add a picture-perfect single display for their desk set up.
DUAL 4K DISPLAY WITH WINDOWS-Windows users can plug into the MX3 to run up to three ultra-polished external displays.
11 HIGH-PERFORMANCE PORTS- Port 1-USB-A 3.1 Gen 1 (5G) BC 1.2 & Apple Charging (Supports Smartphone charging).
Port 2- USB-C 3.1 Gen 2 (10G) BC 1.2 & Apple Charging (Supports Smartphone charging)
Port 3- Micro SD Card Reader (SD 4.0)
Port 4 -SD Card Reader (SD 4.0)
Port 5- 3.5mm TRRS Audio/Microphone Jack
Port 6- RJ45 Ethernet 1 Gbps
Port 7 -DisplayPort (DP1.4/DP++)
Port 8 -DisplayPort (DP1.4/DP++)
Part 9- DisplayPort (DP1.4/DP++)
Part 10- USB-A 3.1 Gen1 (5G)
Part 11- USB-A 3.1 Gen1 (5G)
- Technical Information
- Connectivity Technology
- Wired
- Device Supported
- Notebook/Smartphone/Monitor
- Memory Card Reader
- Yes
- Memory Card Supported
- SD
- microSD
- Number of Displays Supported
- 3
- Screen Mode Supported
- 4K
- 5K
- Supported Resolutions
- 3840 x 2160
- Interfaces/Ports
- Host Interface
- USB Type C
- Number of USB 3.1 Type-C Ports
- 1
- Number of USB 3.1 Gen 1 Type-A Ports
- 3
- Number of USB Type-A Ports
- 3
- USB Type-A
- Yes
- USB Type-C
- Yes
- USB Type-C Detail
- 1 x USB-C 3.1 Gen 2 (10G)
- Network (RJ-45)
- Yes
- Number of RJ-45 Ports
- 1
- Number of DisplayPort Outputs
- 3
- DisplayPort
- Yes
- Headphone/Microphone Combo Port
- Yes
- Power Description
- Maximum Power Supply Wattage
- 100 W
- Physical Characteristics
- Product Color
- Black
- Space Gray
- Height
- 26.5 mm
- Width
- 190 mm
- Depth
- 90 mm
- Weight (Approximate)
- 535 g
- Miscellaneous
- Compatibility
- Compatible with all computers with a USB-C port.
- Brand Compatibility
- Microsoft
- Apple
